Architecture is often defined by how it looks—but great architecture is also defined by how it sounds. Acoustic analysis is the process of understanding how sound behaves within built environments and how architectural form, material selection, and geometry influence that behavior. Whether it’s the clarity of speech in a boardroom, the intimacy of a restaurant, or the resonance of a performance hall, acoustics determine how space performs beyond aesthetics.
Acoustical performance affects every human interaction in a space. The goal is not silence—it’s acoustic balance, where reverberation, reflection, and absorption coexist in harmony to support the space’s intended use.
How Do Professionals Approach Acoustic Analysis in Architecture?
Acoustic analysis begins with the definition of space—its typology, geometry, and function. Each spatial type (office, classroom, restaurant, auditorium, etc.) has a target acoustic behavior, quantified through the reverberation time (RT60) metric.
The process follows a structured path:
| Stage | Focus | Objective |
|---|---|---|
| 1. Space Analysis | Identify room type, geometry, and materials | Define baseline acoustic performance |
| 2. Modeling & Diagnosis | Use Sabine or Eyring formulas for RT60, ray-tracing for reflections | Quantify absorption needs and reflection patterns |
| 3. Targeting by Space Typology | Compare with recommended RT60 standards | Establish performance goals |
| 4. Specification & Documentation | Select materials, define coverage by plane | Prepare drawings and specifications |
| 5. Final Integration | Coordinate with MEP, lighting, and finishes | Deliver cohesive acoustic and aesthetic performance |
This method ensures that acoustics are integrated into the design process, not added as an afterthought.

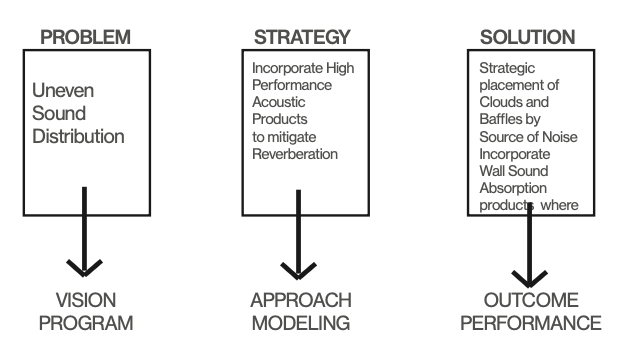

Illustration of Acoustic Analysis Process by CSI Creative
The Core Variables in Commercial Spaces Acoustic Behavior
Acoustic analysis is driven by four major variables:
-
Reverberation – The persistence of sound after the source stops. Controlled through surface absorption and volume.
-
Absorption and Reflection – Determined by material properties. Hard surfaces (glass, metal, stone) reflect sound; porous materials (felt, fabric, wood fiber) absorb it.
-
Sound Distribution – The way sound propagates through the room; influenced by geometry, diffusion, sound direction, and obstacles.
-
Isolation – The ability of walls, ceilings, and floors to prevent sound from passing between spaces.
In practice, these variables interact in complex ways—large spaces amplify reflections, while small ones risk echo overlap and frequency distortion. Acoustic design aims to neutralize those extremes through strategic surface treatment and spatial planning.

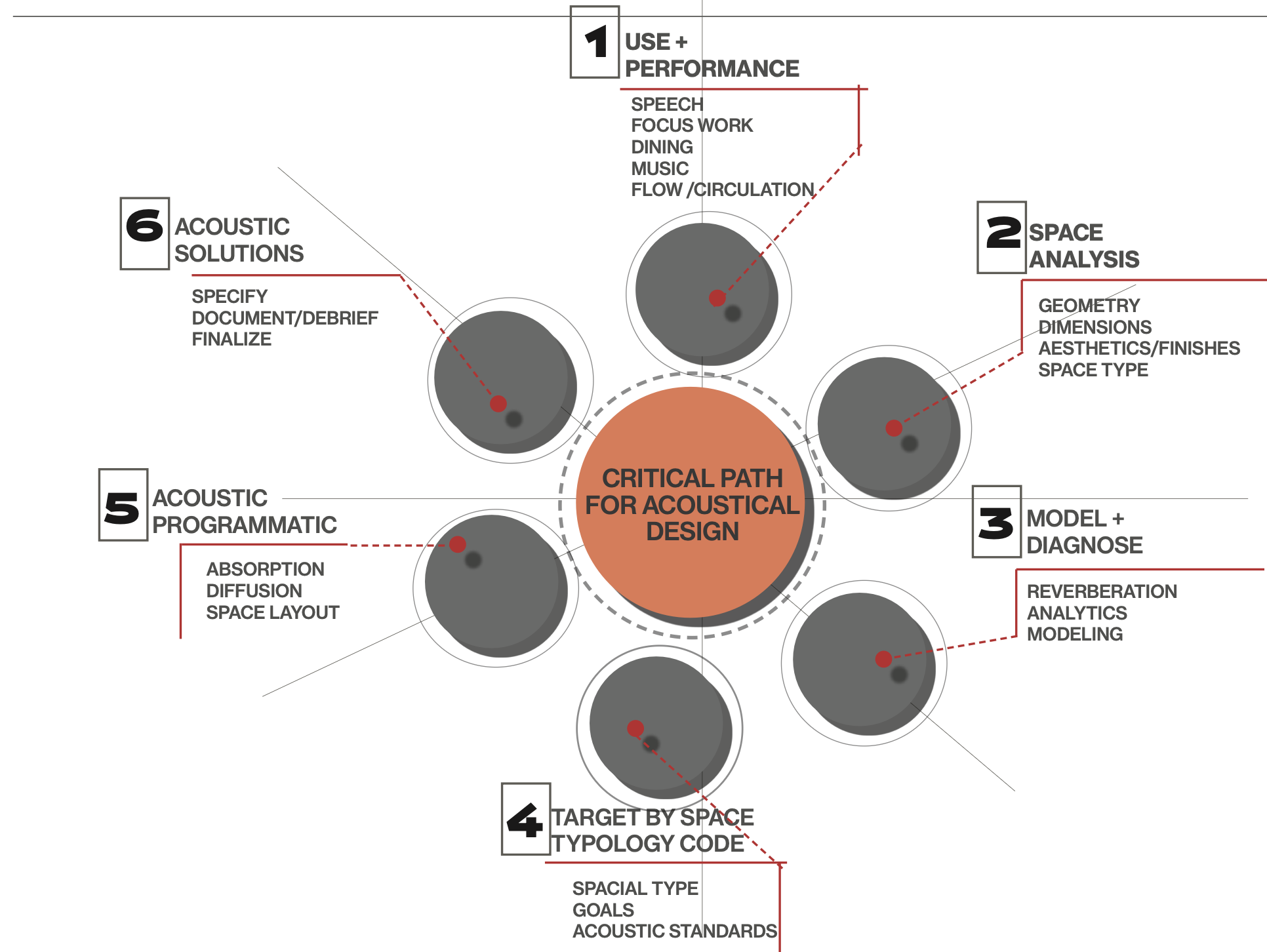

Illustration of Core Variables in Commercial Spaces Acoustic Behavior + Acoustics Analysis Process by CSI Creative
Architectural Conditions that Influence Acoustic Behavior
Architectural ceiling and structural conditions play a decisive role in shaping how sound behaves. Among these, open deck conditions—spaces with exposed concrete slabs, ductwork, lighting, and mechanical systems—present some of the most complex acoustic challenges.
In traditional enclosed ceilings, sound energy interacts primarily with finished surfaces that can be tuned through absorptive materials or suspended ceiling systems. By contrast, open decks expose a mix of hard, reflective materials and mechanical noise sources such as HVAC grilles, diffusers, and cable trays. The result is a longer reverberation time and a more chaotic sound field.
Design Response by Condition
| Architectural Condition | Acoustic Challenge | Design Response |
|---|---|---|
| Open Deck (Exposed Structure) | High reverberation due to concrete and ductwork; interference from HVAC noise | Suspend acoustic clouds or baffles below mechanical lines to absorb reflections; use wool felt or PET Felt panels to “float” absorptive surfaces within visual openness |
| Drop Ceiling or Enclosed Plenum | Reduced volume, better isolation but limited diffusion | Integrate micro-perforated tiles, acoustic ceiling panels, or recessed diffusers to maintain balance between absorption and reflectivity |
| Mixed Ceiling Conditions (Partial Exposure) | Uneven sound behavior between exposed and enclosed zones | Use zonal acoustic zoning—dense ceiling treatments over high-activity zones and wall treatments along reflective planes |
| Industrial or Manufacturing Environments | Continuous mechanical hum, vibration transmission | Combine barrier panels, machine enclosures, and impact isolation systems to separate structural noise paths |
The Role of Sound Direction & Source Type
Not all sound behaves the same way.
-
Mechanical noise (from HVAC, fans, or equipment) typically radiates omnidirectionally and occupies low- to mid-frequency bands. Its energy spreads evenly, making it difficult to isolate without targeted barriers or absorptive ceilings.
-
Human speech, on the other hand, is directional—projected forward from the speaker, primarily between 500 Hz and 4 kHz. In open-plan spaces, these frequencies dominate the sense of noise and distraction.
Understanding directionality allows designers to manage sound at the source rather than react to it. For instance, placing absorptive panels or baffles along the line of speech projection—above collaborative zones or facing audience directions—captures the most critical reflections before they spread.

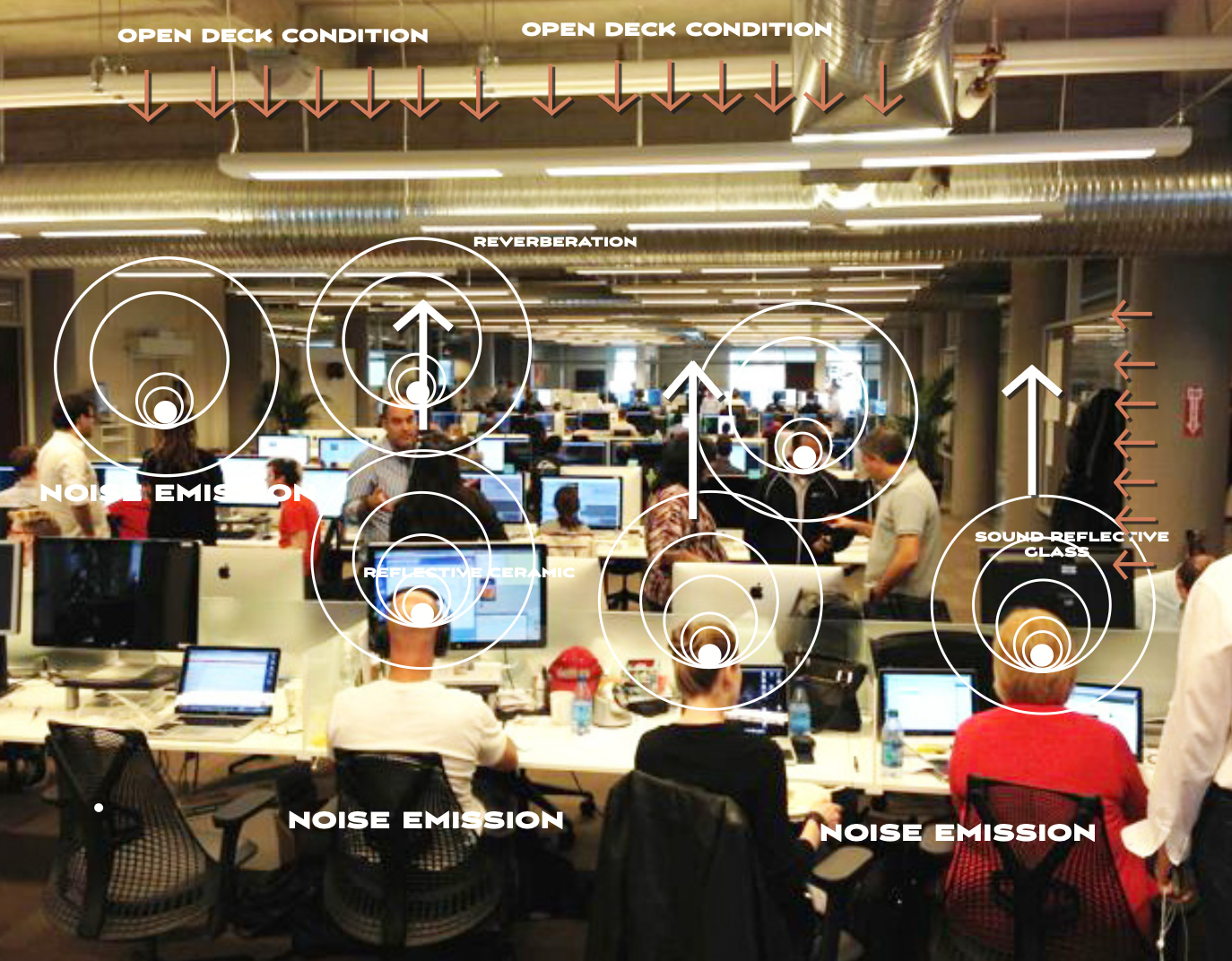

Illustration of Sound Direction & Open Deck Architectural Condition by CSI Creative
Layered Acoustic Strategy
In open decks and other hard-surfaced environments, effective acoustic treatment requires a layered approach:
-
Control emission – isolate or enclose mechanical noise at the source.
-
Interrupt propagation – use absorptive clouds, baffles, or hanging screens at mid-height.
-
Shape perception – use vertical partitions, green walls, and acoustic privacy screens to define quieter human zones without enclosing space.
This spatial layering ensures that human conversation remains intelligible while mechanical background noise is absorbed or masked to a comfortable ambient level. The result is not absolute silence, but a balanced acoustic ecosystem where energy is managed directionally and by frequency.

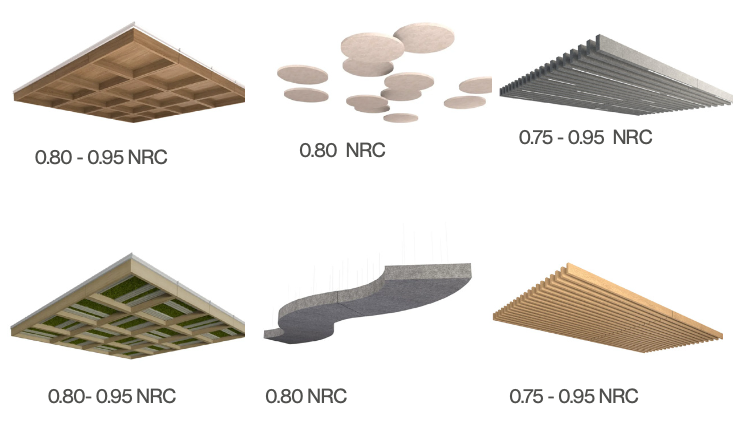

Illustration of Acoustic Ceiling Products that Enhance Commercial Spaces’ Acoustics by CSI Creative
RT60: The Benchmark of Acoustic Efficiency
RT60, or reverberation time, measures how long it takes for sound to decay by 60 dB after the source stops. The target RT60 depends on the function of the room:
| Space Type | Recommended RT60 Range (Seconds) | Acoustic Goal |
|---|---|---|
| Private Offices | 0.4 – 0.6 | Clear speech, minimal echo |
| Open Offices | 0.5 – 0.8 | Speech privacy, reduced distraction |
| Classrooms | 0.5 – 0.7 | High speech intelligibility |
| Restaurants | 0.8 – 1.2 | Lively yet comfortable ambiance |
| Auditoriums | 0.8 – 1.4 | Full-bodied sound projection |
| Theaters | 1.2 – 1.8 | Musical warmth and balance |
An imbalance in RT60—too high or too low—can distort speech or flatten musical energy. Through simulation and modeling, architects can test these values digitally before construction, refining materials and geometry to achieve the ideal acoustic response.
Materials that Enhance & Modify Acoustic Performance
The shift toward hybrid architecture has introduced a new palette of acoustically active materials:
-
Felt and Wool Felt: High sound absorption, ideal for mid–high frequencies.
-
Recycled PET: Lightweight, sustainable, excellent NRC (0.75–0.95).
-
Perforated Wood or Metal: Provide diffusion and controlled reflection.
-
Greenery Systems: Introduce biophilic design while enhancing acoustic scattering, benefiting acoustically also from the backer’s material (e.g. from the PET Felt of the backer of a replica green wall).
Material selection should consider frequency response, NRC value, fire rating, and integration with architectural finishes. The right combination creates a multi-layered acoustic system—absorbing unwanted noise while preserving liveliness and clarity.
How Geometry, Layout, & Design Work as Acoustic Tools
Spatial geometry is as influential to sound behavior as the materials that compose it. The way a space is shaped—and how its surfaces relate to one another—determines how sound propagates, reflects, and decays.
Parallel walls or ceilings create flutter echoes and phase interference; concave geometries can focus and amplify sound energy, producing hotspots. Effective acoustic design intentionally breaks these reflections apart through angled ceilings, suspended baffles, acoustic clouds, diffusive slats, and strategically varied wall depths.
Yet form alone isn’t enough. Spacing and thickness directly define a surface’s acoustic response.
-
Increasing the thickness of absorptive panels enhances low-frequency performance, while thinner panels target mid-to-high frequencies.
-
Spacing panels away between each other creates an air cavity that reduces absorption efficiency, often yielding lower NRC ratings with the same material volume.
-
Maintaining even spacing between baffles or clouds ensures consistent coverage, minimizing seat-to-seat variability and dead zones.
Acoustic layout also extends into functional zoning. The inclusion of green walls, privacy screens, and freestanding acoustic dividers helps define quieter micro-environments within open-plan offices or hospitality spaces. These elements act as both sound absorbers and diffusers, reducing transmission across zones while maintaining openness and visual continuity.
Finally, the interaction between ceiling height, furniture density, and occupancy defines the acoustic equilibrium. Even subtle interventions—like adding soft furnishings, rugs, or vegetated panels—can recalibrate reverberation and improve uniformity across the entire sound field, transforming architecture into a finely tuned acoustic instrument.

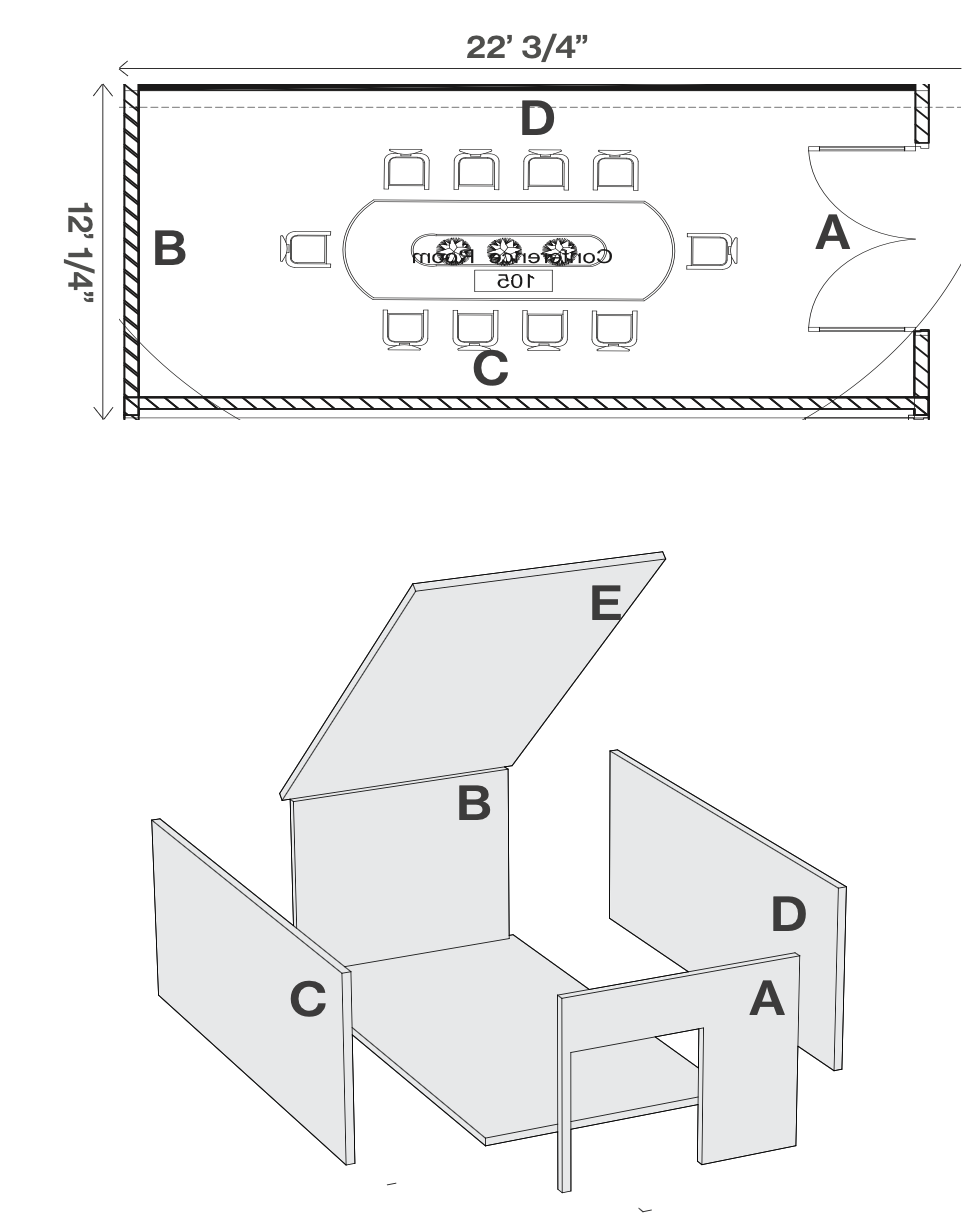

Illustration of Factors to Consider in Commercial Spaces’ Acoustic Analysis by CSI Creative
What Are the Deliverables in a Professional Acoustic Design Workflow?
An architectural acoustic analysis typically produces:
-
Modeling Reports (RT60, STI, NC/RC, SNR analysis)
-
Drawings (plans, sections, materials by plane)
-
Specifications (Division 09 acoustical units)
-
Mockups and Test Areas to confirm on-site performance
Each document bridges the language of architecture and physics, ensuring that sound performance aligns with design intent and code compliance.

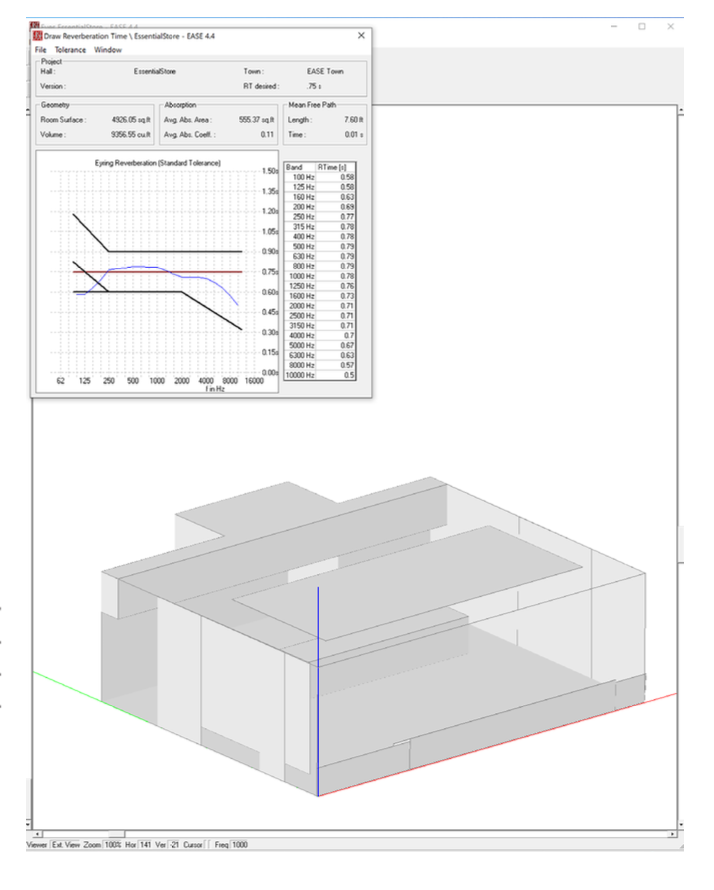

Example of Drawing of Reverberation Time by CSI Creative
Why Should Acoustic Design Be Integrated Early in the Project Lifecycle?
Integrating acoustics in the early schematic and design development stages prevents expensive retrofits and ensures harmony between aesthetics and performance.
By considering reverberation analytics, diffusion patterns, and isolation details upfront, architects can ensure that sound behavior complements lighting, HVAC, and spatial flow. The result is not just compliance—but human comfort, productivity, and emotional connection within space.
How CSI Creative Applies This Methodology
At CSI Creative, this same framework of analysis, modeling, and integration drives our acoustic design process.
We implement space-specific acoustic diagnostics—evaluating reverberation, reflection, and noise concentration—to tailor acoustic wall, ceiling, and greenery systems for each project. Materials such as PoshFelt®, Soundcore®, and WoodLite embody the technical rigor of professional acoustic design, combining NRC-rated performance with architectural precision. That’s how we turn acoustic theory into functional beauty—spaces that don’t just look designed, but sound designed, from ideation to installation.
